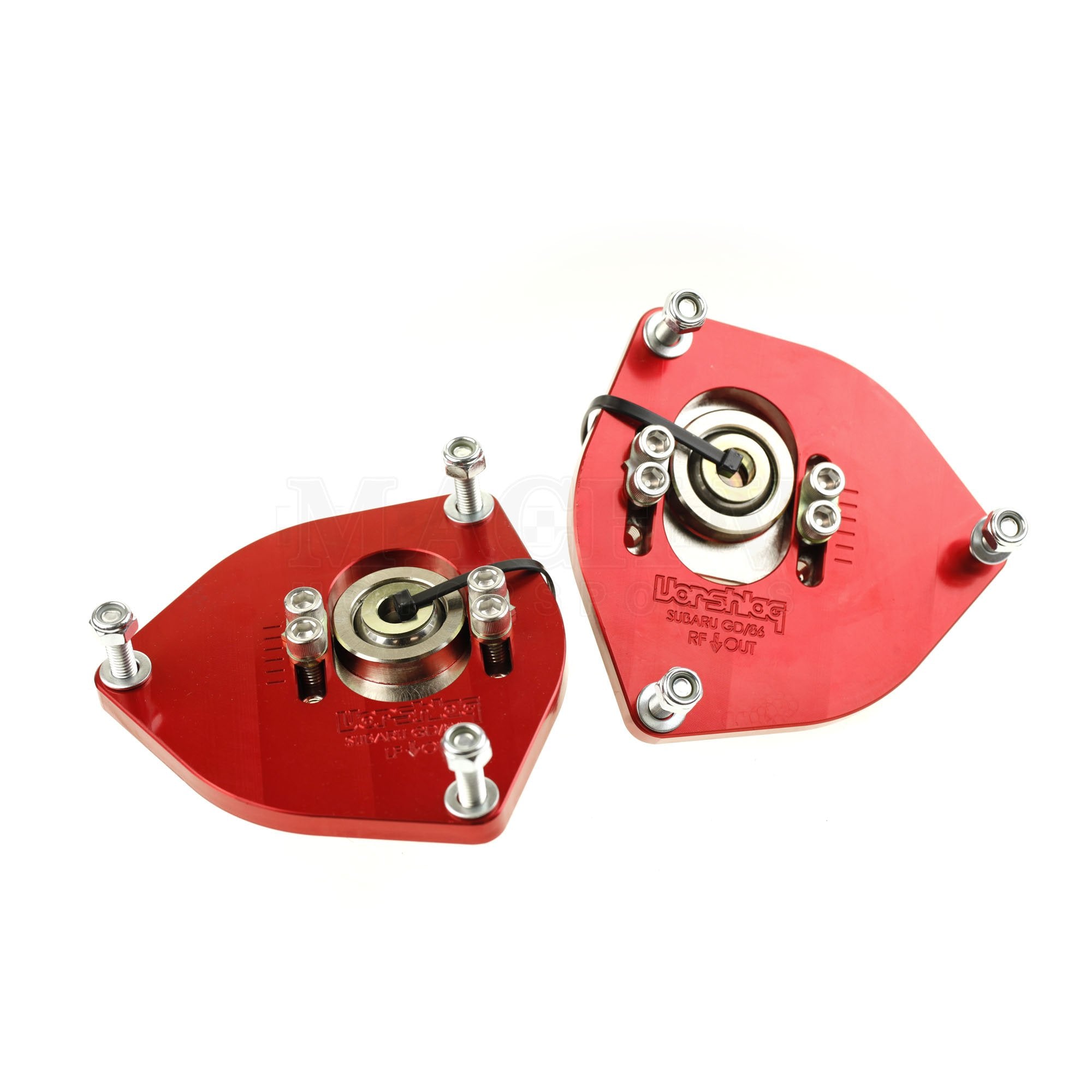

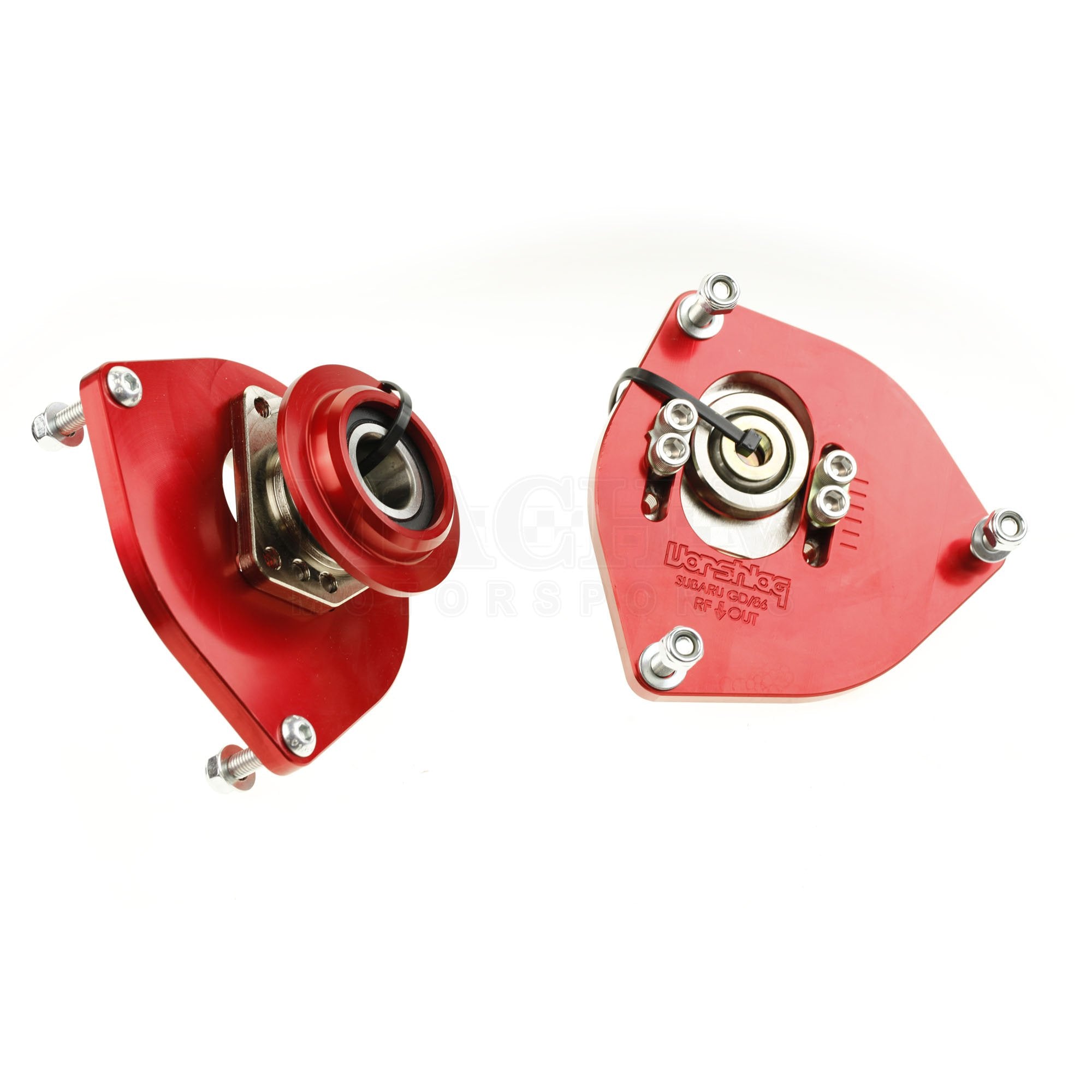

Easily adjust front camber settings track side with Vorshlag front camber plates for 2004-2007 Subaru WRX and WRX STI. Over-sized spherical bearings and alloy steel bearing holders are designed to withstand the rigors of street and track abuse as well as provide minimal stack-up height and maximum suspension travel. All components are plated for maximum corrosion resistance and long life. Vorshlag have also added +1.0 positive caster into these plates compared to the OEM upper strut position (.450" displacement rearward) when used in this chassis.
The custom spring perches incorporate a sealed double row axial bearing for extremely low rotational friction and a lifetime of trouble free use, and remove rotational loads from the spherical bearing. Vorshlag camber plates are designed to be compatible with all common strut types.
Installs with basic hand tools, no chassis modifications required.
Camber is easily adjustable at the track from the engine compartment with simple hand tools. No need to reach inside the wheel well with a wrench!
The design adds 1.0 positive caster.

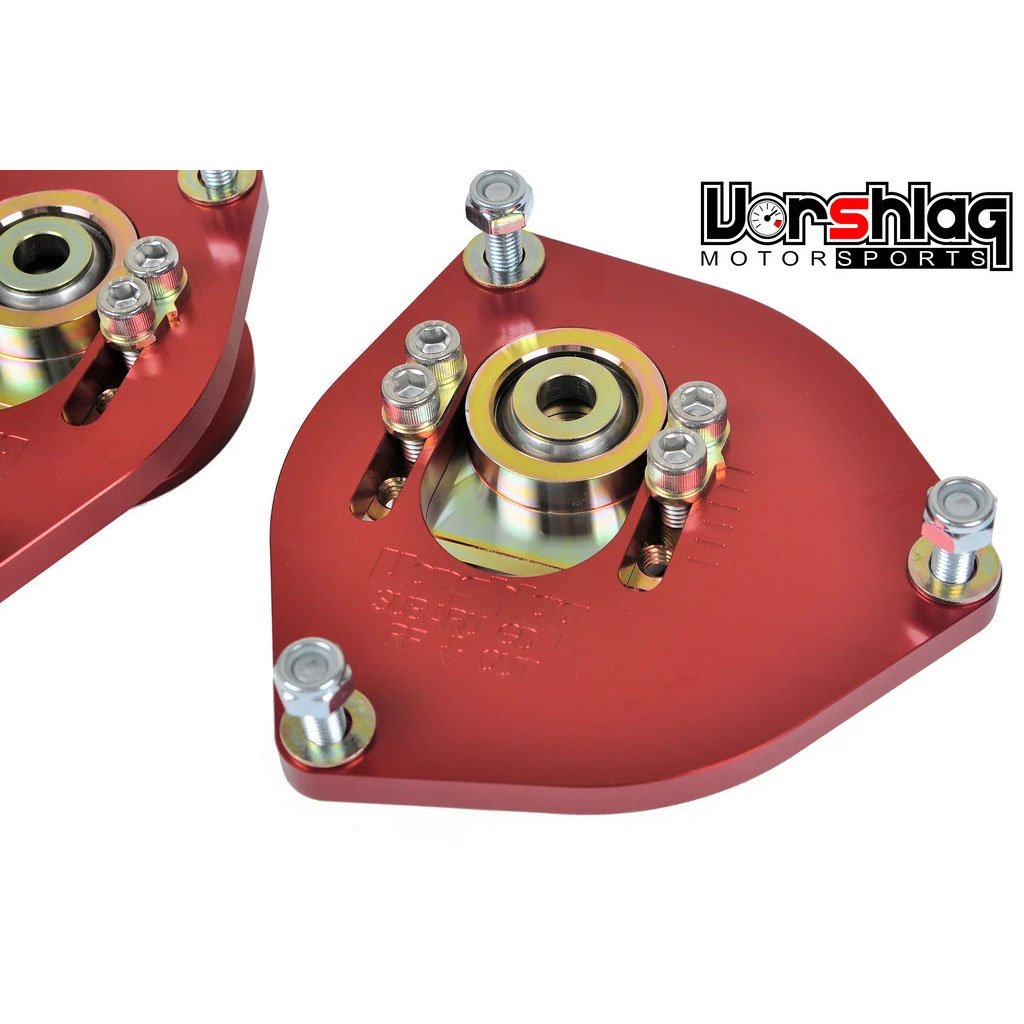

The spherical bearing used in Vorshlag camber plates is the largest used in any Subaru camber plate. The result has much better durability and wear characteristics than the undersized bearings used in some competitors' plates.
Designed using .400" aluminum alloy. The high strength of the aluminum allows these to have the minimum stack-up height and maximum suspension bump travel. More than an inch more strut travel than some of our competitors!
100%CNC machined, anodized aluminum alloy construction
All components plated for maximum corrosion resistance and long life.

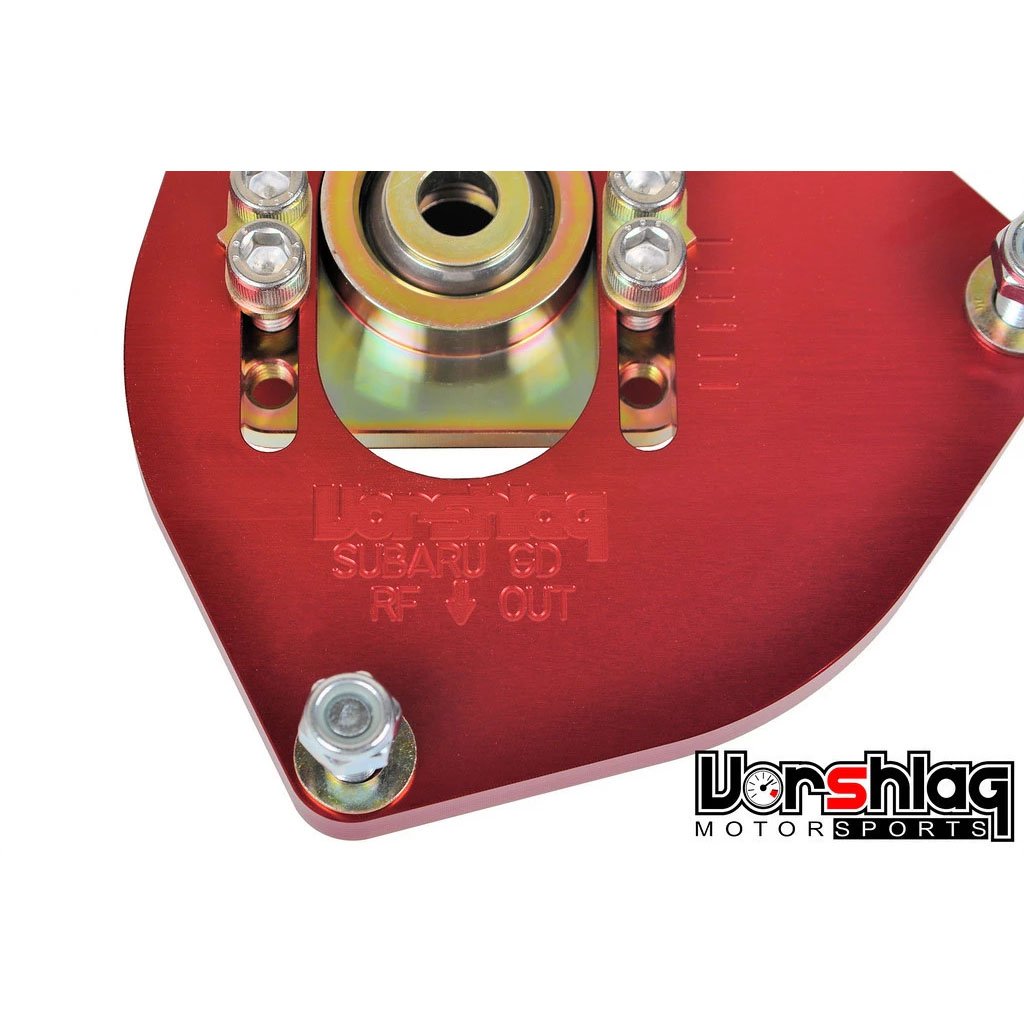

Engraved with Vorshlag logo, model, and side/front orientation.

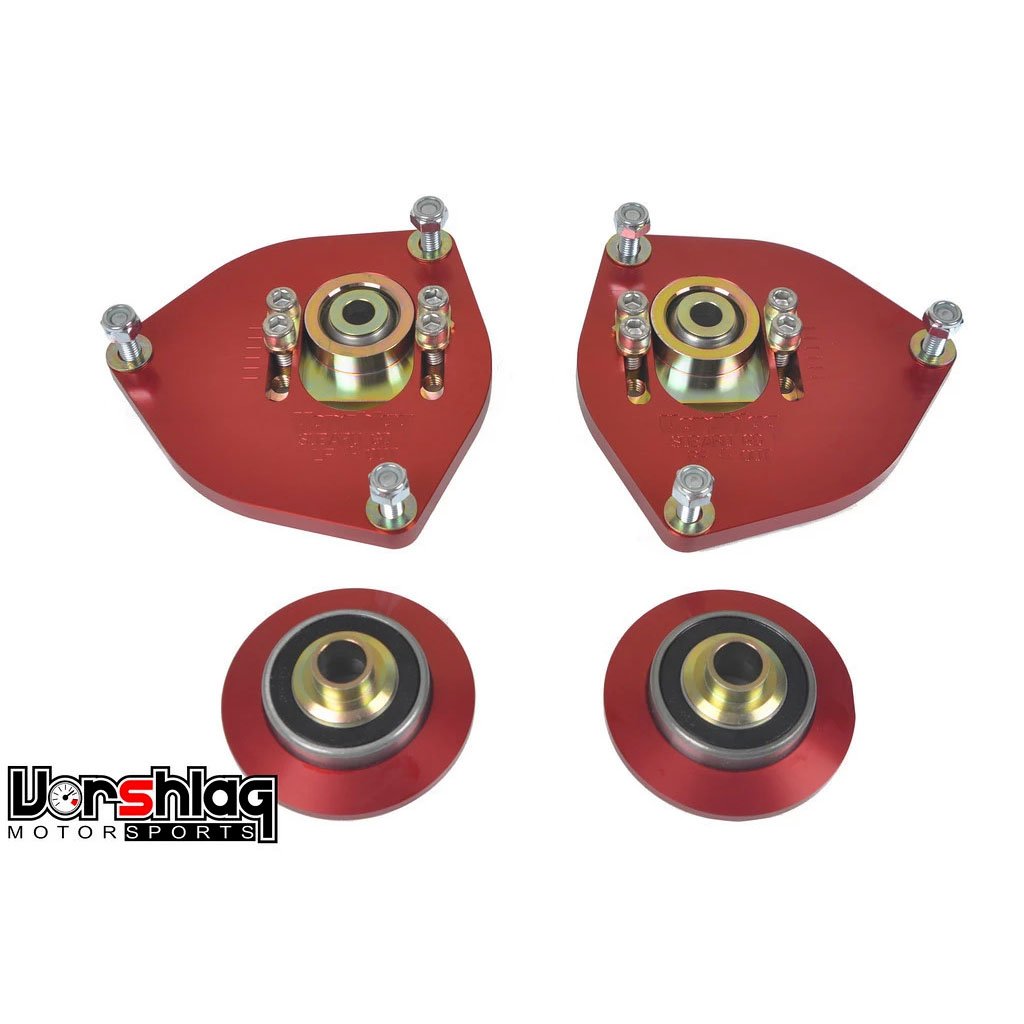

The included pair of Vorshlag aluminum upper perches include sealed Vorshlag Radial Bearings for ultra low friction steering resistance, isolating strut shaft rotation from the spherical bearing for long life.
All Vorshlag camber plates are designed to work with Vorshlag upper spring perches. The Vorshlag perches incorporate sealed radial bearings - which remove the spring rotation during suspension travel from the spherical bearing. The perches also incorporate pressed in adapters to fit your strut shaft to our over-sized spherical bearing perfectly.
Note that these camber plates are designed to work with Racecomp and GTWORX-brand coilovers ONLY. They will NOT work with stock struts/springs, nor will they work with other-brand coilovers.
Set of two upper front strut mounts. Coilovers not included, sold separately.
Fits all 2002-2007 Subaru WRX and STI.
